Concrete and steel mesh






Rebar


  Dimension (mm)
5,5 6,0 8,0 10,0 12,0 14,0 16,0 18,0 19,0 20,0 22,0 24,0 25,0 28,0 30,0 32,0
Extend (smooth)           x X X   x x x x x x X
Extend (rib)         x x X X X x x x
The pulley (smooth) x x x x x x x
The pulley (ribbed)   x x x x

• Extend the length of rebar 6000 (12 000) mm

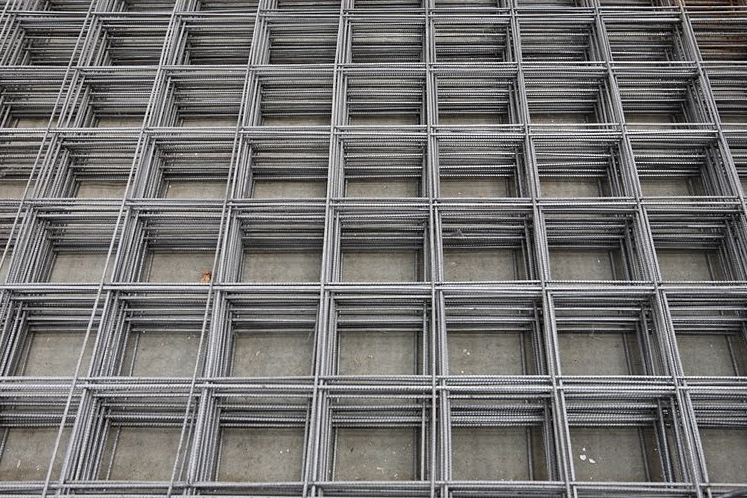

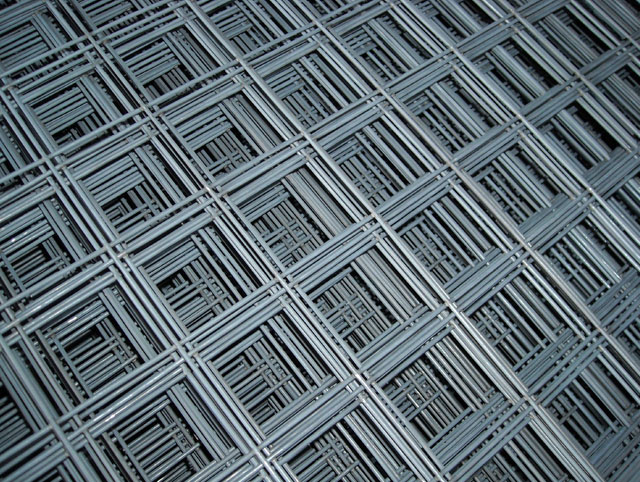

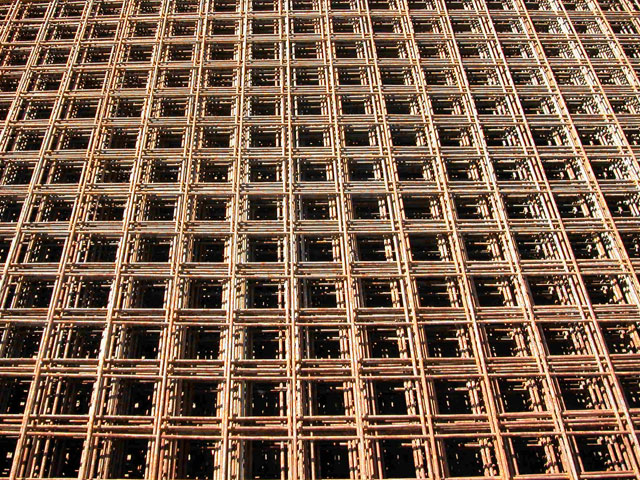

Armature

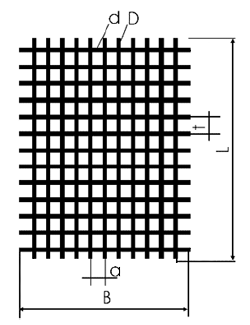

Handset display (type) Diameter wire Wire distance
Longitudinal D Transverse Longitudinal a Transverse t
(mm) (mm) (mm) (mm)
Q 84 4,0 4,0 150 150
Q 92 4,2 4,2 150 150
Q 111 4,6 4,6 150 150
Q 126 4,0 4,0 100 100
Q 131 5,0 5,0 150 150
Q 139 4,2 4,2 100 100
Q 166 4,6 4,6 100 100
Q 188 6,0 6,0 150 150
Q 196 5,0 5,0 100 100
Q 221 6,5 6,5 150 150
Q 238 5,5 5,5 100 100
Q 257 7,0 7,0 150 150
Q 283 6,0 6,0 100 100
Q 331 6,5 6,5 100 100
Q 335 8,0 8,0 150 150
Q 378 8,5 8,5 150 150
Q 385 7,0 7,0 100 100
Q 424 9,0 9,0 150 150
Q 442 7,5 7,5 100 100
Q 503 8,0 8,0 100 100
Q 524 10,0 10,0 150 150
Q 567 8,5 8,5 100 100
Q 577 10,5 10,5 150 150
Q 636 9,0 9,0 100 100
Q 709 9,5 9,5 100 100
Q 785 10,0 10,0 100 100

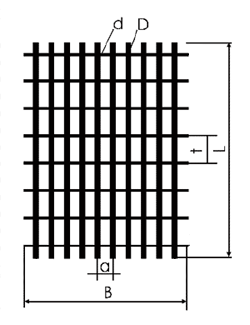

Handset display (type) Diameter wire Wire distance
Longitudinal D Transverse d Longitudinal a Transverse t
(mm) (mm) (mm) (mm)
R 84 4,0 4,0 150 250
R 92 4,2 4,0 150 250
R 111 4,6 4,0 150 250
R 126 4,0 4,0 100 250
R 131 5,0 4,0 150 250
R 139 4,2 4,0 100 250
R 166 4,6 4,2 100 250
R 188 6,0 4,0 150 250
R 196 5,0 4,2 100 250
R 221 6,5 4,6 150 250
R 238 5,5 4,2 100 250
R 257 7,0 5,0 150 250
R 283 6,0 4,0 100 250
R 331 6,5 4,6 100 250
R 335 8,0 5,0 150 250
R 378 8,5 5,0 150 250
R 385 7,0 5,0 100 250
R 424 9,0 6,0 150 250
R 442 7,5 5,5 100 250
R 503 8,0 6,0 100 250
R 524 10,0 6,0 150 250
R 567 8,5 6,0 100 250
R 577 10,5 6,0 150 250
R 636 9,0 6,0 100 250
R 709 9,5 6,0 100 250
R 785 10,0 6,0 100 250

B = 2150mm
L = 6050mm
